Products > Heat Trace > Temperature Controls

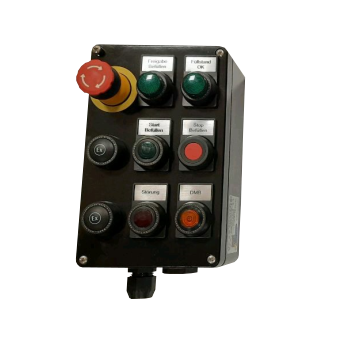

CONTROL UNITS - SKX 20

Control units are designed for use in the industrial areas and facilities, indoor and outdoor spaces. Hazardous areas 1, 2, 21, 22

Features

  • Ambient temperature: -20 º  C ≤ Ta ≤ +50 ºC
  • Degree of protection: IP 66 category
  • Resistance to shock: IK 08
  • Rated insulation voltage Ui:690 V AC (type with mantle terminals type SL Ui=400V AC)
  • Rated current Ith: Up to 16 A  (SKX 12-15)Up to 80A (SKX 16-20)
  • PE  terminals (inside of the enclosure): max. 2x4 mm2+2x2,5 mm2 , 3x4 mm2 , 2x6 mm2
Download Spec Sheet

Description

SKX control station units are used for control, distribution and signalling in hazardous areas where a presence of flammable gas or dust is possible. Built-in components, actuators and signal indication can be fitted in or on an Exe enclosure or in combination in a merged unit. The modular design enables flexibility to meet almost any application within the certification parameter.

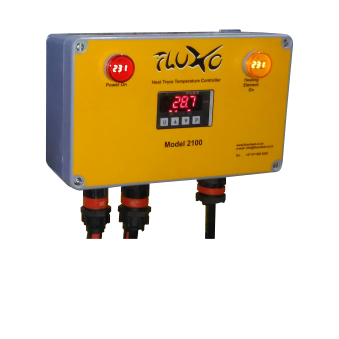

FLUXO LED TEMPERATURE DIGITAL CONTROLLER

Control units are designed for use in the industrial areas and facilities, indoor and outdoor spaces. Hazardous areas 1, 2, 21, 22

Features

  • Mounted into IP67 GRP Enclosure with switch gear
  • All wired to terminals
  • Pilot light indication for power/heater on/off control
  • With pipe mounting mounting brackets to be mounted on the surface of pipelines, tanks and vessels, etc

Description

Fluxo LED Temperature Digital Controllers are designed to custom spec; job-specific. Features: Mounted into IP67 GRP Enclosure with switch gear; All wired to terminals; Pilot light indication for power/heater on/off control; With pipe mounting mounting brackets to be mounted on the surface of pipelines, tanks and vessels, etc.
ORDER PRODUCT
menu exit icon

Heat Trace

Self-Regulating Cables FAILSAFE ULTIMO - FSU/FSU(w) 250ºC FAILSAFE SUPER - FSS 225ºC FREEZSTOP EXTRA - FSE/FSE(w) 100ºC FREEZSTOP REGULAR - FSR 85ºC FREEZSTOP MICRO - FSM 65ºC FREEZSTOP LOW VOLTAGE - FLV/FLVw 85ºC HOTWAT HWR-T/HWP-T 100ºC
Termination Methods Universal Connection System STRIPFREE SF-P/SF-T/SF-E WJB Safe Area Junction Boxes JB9000 Non-Ex/Ex Junction Box JB9000 Non-Ex Junction Box with DESTU Entry Termination Sets, Cold Silicon & Heat Shrink for supply & end pieces
Constant Wattage Cables FAILSAFE ULTIMO - FSU/FSU(w) 250ºC FAILSAFE SUPER - FSS 225ºC FREEZSTOP EXTRA - FSE/FSE(w) 100ºC
Thermostats AILSAFE ULTIMO - FSU/FSU(w) 250ºC FAILSAFE SUPER - FSS 225ºC
Digital Temperature Controls AILSAFE ULTIMO - FSU/FSU(w) 250ºC
Heat Trace Accessories AILSAFE ULTIMO - FSU/FSU(w) 250ºC
Heat Trace >   Self-Regulating Cables >   FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

Extremely high temperature self-regulating heating cable

Features

  • 250ºC Exposure temperature withstand, (energised or switched off)
  • High power outputs to 100W/m at 10ºC
  • Inherently temperature-safe (ITS)
  • External temperature controls not necessary
Download Spec Sheet

Description

FSU is an extremely high temperature self-regulating heating  cable, having an exposure limit of 250ºC, energised or not. It has easy terminations, and able to be cut-to-length. It has the safest ever self-regulating product range for extremely high temperature exposure; it will not overheat even when exposed to 250ºC when energised or switched off as it is inherently temperature-safe. It is ATEX and IECEx Approved.
FAILSAFE ULTIMO - FSU/FSU(w) 250ºC Self-regulating heat trace cable
