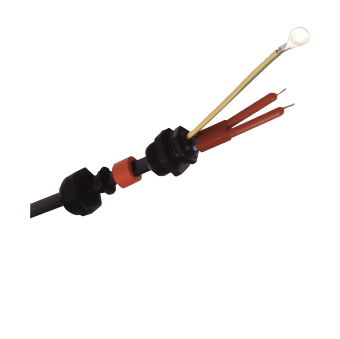

TERMINATION SETS - EX AREAS

Silicon termination set for use in hazardous area

Features

  • Compact design
  • Temperature resistant up to 200°C
  • Quick and easy to assemble
  • Suitable for different types of heating tapes FSLe; FSR; FSWE; FSS; FSU (up to 130°C)
  • Power supply and end termination separately available

Description

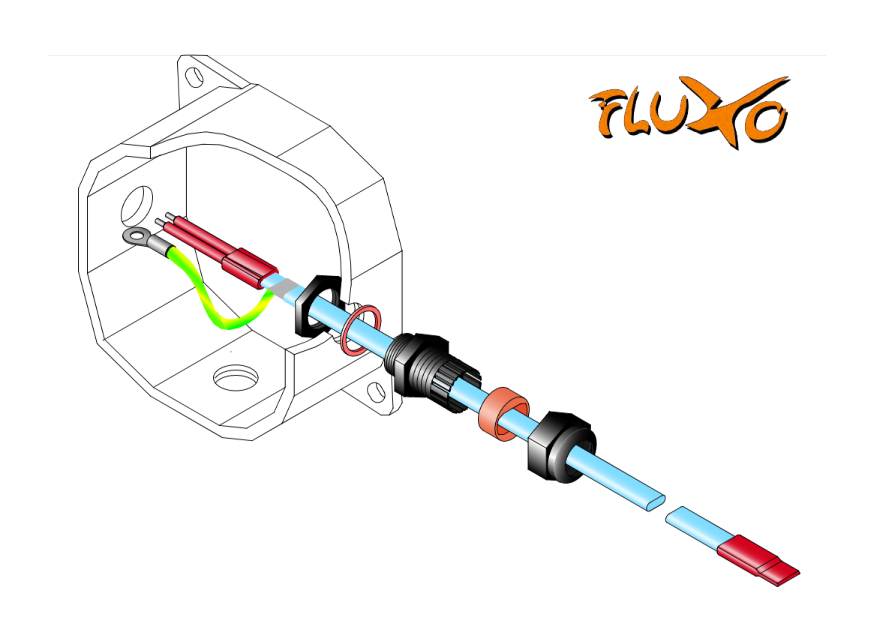

The termination kits of the BEPS4-series are silicon-made termination parts which contains power supply, end seal, a special cable gland and various accessories. These termination kits can be used to connect the heating circuit directly in an Exe approved junction box e.g.JB 9000.There is no separate supply cable needed.Because of the high temperature resistance up to 200 °C, heating cable types FSS are suitable as well as mid-& high temperature heating cable types FSR; FSU, FSS, EMTS, PHT.
Heat Trace >   Self-Regulating Cables >   FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

Extremely high temperature self-regulating heating cable

Features

  • 250ºC Exposure temperature withstand, (energised or switched off)
  • High power outputs to 100W/m at 10ºC
  • Inherently temperature-safe (ITS)
  • External temperature controls not necessary
Download Spec Sheet

Description

FSU is an extremely high temperature self-regulating heating  cable, having an exposure limit of 250ºC, energised or not. It has easy terminations, and able to be cut-to-length. It has the safest ever self-regulating product range for extremely high temperature exposure; it will not overheat even when exposed to 250ºC when energised or switched off as it is inherently temperature-safe. It is ATEX and IECEx Approved.
FAILSAFE ULTIMO - FSU/FSU(w) 250ºC Self-regulating heat trace cable
