JUNCTION BOXES - SAFE AREAS

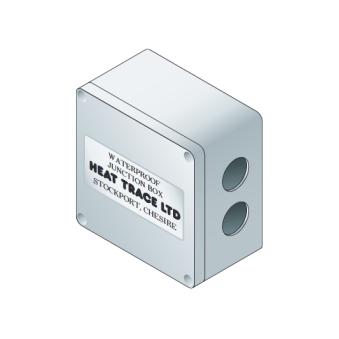

WJB20 Junction Box and other models, all for Safe Areas

Features: WJB20

  • Dimensions (mm) 106  x 105  x  67.5
  • Entries 5 x 20mm
  • Terminals 6 x 4mm²
Download Spec Sheet

Description

Standard Termination involves the use of conventional plastic or metal cable glands. These glands are specifically made for our heating cables. Cable Glands are normally supplied in termination kits. The kits are available for safe and hazardous areas and contain all the parts required for connection to the power and to terminate the end of the cable. Kits also contain a caution label and cable identification tag.

Weather proof junction boxes, rated IP66, constructed from polycarbonate material.
Designed for use with a glanded cable entry system.

As standard, robust and corrosion resistant polyamide enclosures are supplied for use in safe (non-hazardous) and hazardous (Zone 1 or Zone 2) areas.
