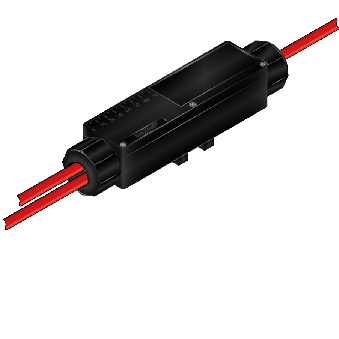

STRIPFREE SF-P/SF-T/SF-E

Universal system for termination of Heat Trace self-regulating heating cable; For Safe and Hazardous Areas

Features

  • Power Connection, or In-Line & Tee splice; plus End Seal
  • Unique cutting system ensures optimum electrical contact
  • No need to strip down to conductors
  • Suitable for use in safe and hazardous areas
  • Lower system costs
  • 16A rating
Download Spec Sheet

Description

The STRIPFREE range of connectors is a universal power termination and splicing system for use with FLUXO’s self-regulating heating cables. No special tools are needed to perform a neat, convenient and simple termination. Installation comprises simply cutting the heater to length and removal of the outer sheath (if provided). The heating cable is inserted into the StripFree unit and the end connection made by screwing down the cutting blades onto the buswires, whilst automatically clamping the braid. All of this is achieved without the need to strip away the semi-conductive heating matrix.
Heat Trace >   Self-Regulating Cables >   FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

Extremely high temperature self-regulating heating cable

Features

  • 250ºC Exposure temperature withstand, (energised or switched off)
  • High power outputs to 100W/m at 10ºC
  • Inherently temperature-safe (ITS)
  • External temperature controls not necessary
Download Spec Sheet

Description

FSU is an extremely high temperature self-regulating heating  cable, having an exposure limit of 250ºC, energised or not. It has easy terminations, and able to be cut-to-length. It has the safest ever self-regulating product range for extremely high temperature exposure; it will not overheat even when exposed to 250ºC when energised or switched off as it is inherently temperature-safe. It is ATEX and IECEx Approved.
FAILSAFE ULTIMO - FSU/FSU(w) 250ºC Self-regulating heat trace cable
