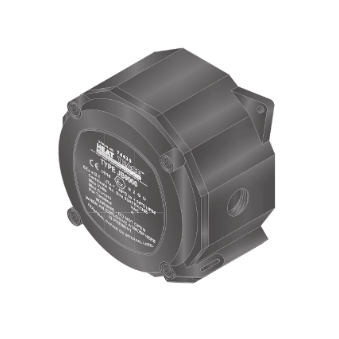

JUNCTION BOXES - EX AREAS

Junction boxes for use with electric trace heating systems

Features

  • Available for use in safe and hazardous areas
  • Suitable for use with many styles of heating cable
  • Can be used with a selection of terminals
  • IP66/68 rated

Description

Standard Termination involves the use of conventional plastic or metal cable glands. These glands are specifically made for our heating cables. Cable Glands are normally supplied in termination kits. The kits are available for safe and hazardous areas and contain all the parts required for connection to the power and to terminate the end of the cable. Kits also contain a caution label and cable identification tag.

Weather proof junction boxes, rated IP66, constructed from polycarbonate material. Designed for use with a glanded cable entry system.

As standard, robust and corrosion resistant polyamide enclosures are supplied for use in safe (non-hazardous) and hazardous (Zone 1 or Zone 2) areas.

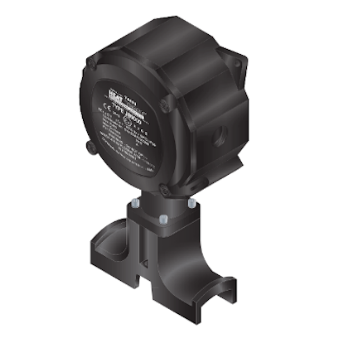

DESTU FOR JUNCTION BOXES

Direct Entry Sealed Termination Unit: for use with the FLUXO range of heating cables

Features

  • Suitable for use in safe and hazardous areas
  • Eliminates the risk of damage to heating cables at termination points
  • IP54 rated
  • May be used for power connection, in-line and tee-splicing

Description

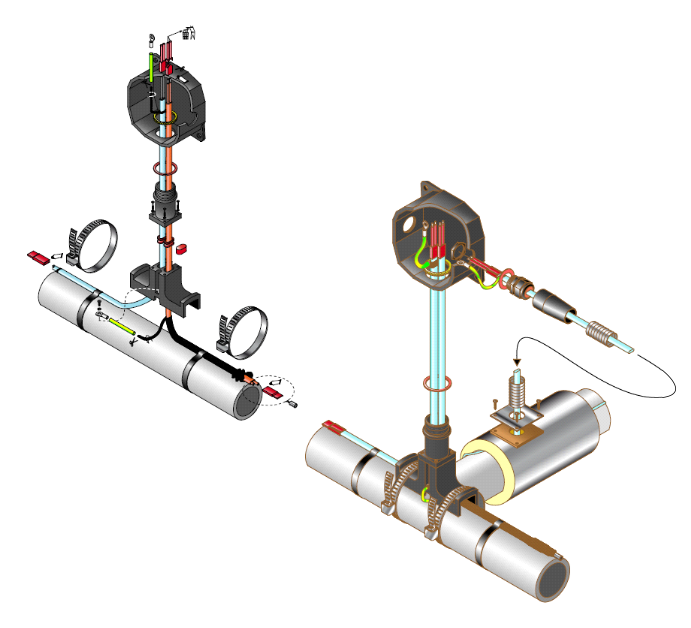

The DESTU is a direct entry sealed termination unit for use with the majority of the Heat Trace range of self-regulating, and constant wattage heating cables. Made from Glass Reinforced PPS, it has been designed specifically to reduce the risk of damage to heating cables at termination points. Thus avoiding the need to expose the heating cable as it emerges from the thermal insulation for connection into the junction box. The DESTU may be used for power termination, in-line splice and tee splice terminations. When the RTD version of the unit is ordered, it is also suitable as a means of temperature sensing at various points along the length of heated pipework.The DESTU is approved for use in non-hazardous and hazardous locations to EN Euro Norms.
Heat Trace >   Self-Regulating Cables >   FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

FAILSAFE ULTIMO - FSU/FSU(w) 250ºC

Extremely high temperature self-regulating heating cable

Features

  • 250ºC Exposure temperature withstand, (energised or switched off)
  • High power outputs to 100W/m at 10ºC
  • Inherently temperature-safe (ITS)
  • External temperature controls not necessary
Download Spec Sheet

Description

FSU is an extremely high temperature self-regulating heating  cable, having an exposure limit of 250ºC, energised or not. It has easy terminations, and able to be cut-to-length. It has the safest ever self-regulating product range for extremely high temperature exposure; it will not overheat even when exposed to 250ºC when energised or switched off as it is inherently temperature-safe. It is ATEX and IECEx Approved.
